- INPUT
HDMI: HDMI 2.0 x3 (3840×2160 @60Hz)
RGB / VGA: x 1
Audio: x 1
RS232: x 1
OPS: X1 PC Slot
WiFi: x 1 WiFi Slot
- OUTPUT
HDMI: HDMI out 2.0 x1 (3840×2160 @60Hz)
Audio: 3.5mm * 1
SPDIF: x1
- LAN
RJ45: x2
- USB
Type A: USB2.0 x 1USB3.0 x 4
Type B: x2, for touch
Type C: x1
- SPEAKERS
16Wx2
- Top Camera Plate
YES
- COMPATIBILITY
RGB PC/HDMI PC: 1920×1080
HDMI: 4K 60Hz/30Hz/1080p
- Embedded OS
Android 9
- Bundle Software
Basic Annotation Software: myViewBoard for android
Pro Annotation Software: myViewBoard for windows (Embedded in Windows Slot-in PC)
Wireless Presentation: Viewboard Cast
- Special Features
All-in-one USB port: Front “SmartPort USB” to all channels.
Simple LAN sharing between IFP and slot-in device: Yes
Light Sensor: Yes
- Power
Voltage: 100-240VAC +/- 10% Wide Range
Consumption: On mode: 192.5W, Off mode< 0.5W
- ERGONOMICS

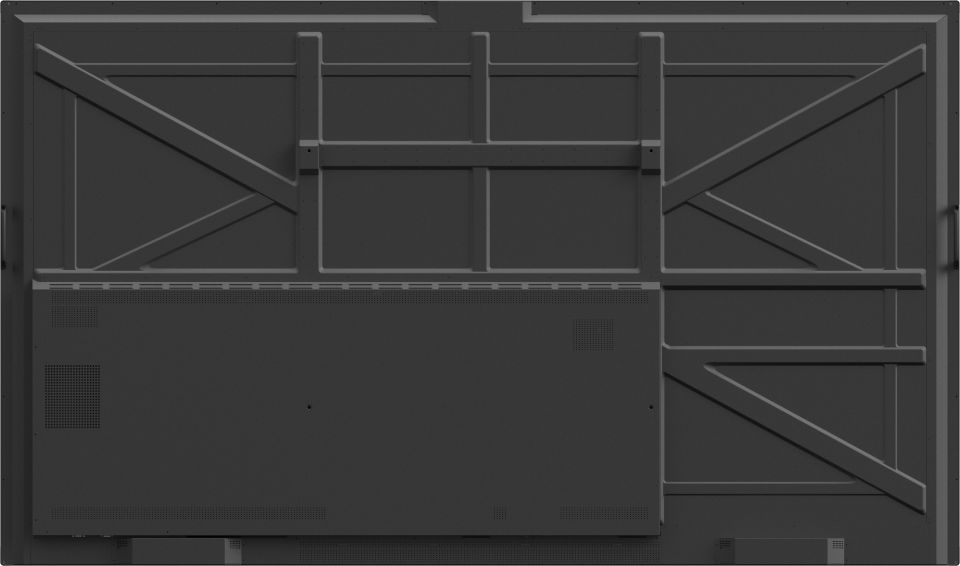

Wall Mount (VESA® ): 800*600
- OPERATING CONDITIONS
Temperature (º C): 0°C to 40°C
Humidity: 10% ~ 90% RH non-condensing
- DIMENSIONS (W x H x D)
Physical (inch / mm): 88.4 x 52.1 x 3.6 in /2245 x 1323 x 91 mm
Packaging (inch / mm): 95.9 x 58.8 x 13.6 in / 2435 x 1483 x 346 mm
- WEIGHT
Net (lb / kg): 228.4lb / 103.6kg
Gross (lb / kg): 293.7lb / 133.2kg
- REGULATIONS
FCC, cTUVus, EPEAT, ES8, LBL, CE, CB, RCM
- PACKAGE CONTENTS
1. Power cord
2. Remote control with AAA battery
3. USB cable for touch
4. Touch pen x 2
5. Quick Start Guide
6. RS232 adapter
7. Clamp x 5
8. Camera plate
9. Screw x 8
10. HDMI cable
11. USB Typc-C cable
- Compatible Slot-in PC
VPC12-WPO series/VPC25-O series/VPC27-O series
