- INPUT
HDMI: 2.0 x2 (3840×2160 @60Hz)
(HDMI2 port support ARC function)
RGB / VGA: x1
Audio: x1 (PC audio in)
RS232: x1
OPS: x1 (Optional Intel Standard OPS)
WiFi: x1 (Optional VB-Wifi-002)
- OUTPUT
Audio: x1 (Earphone out)
- LAN
RJ45: x1
- USB

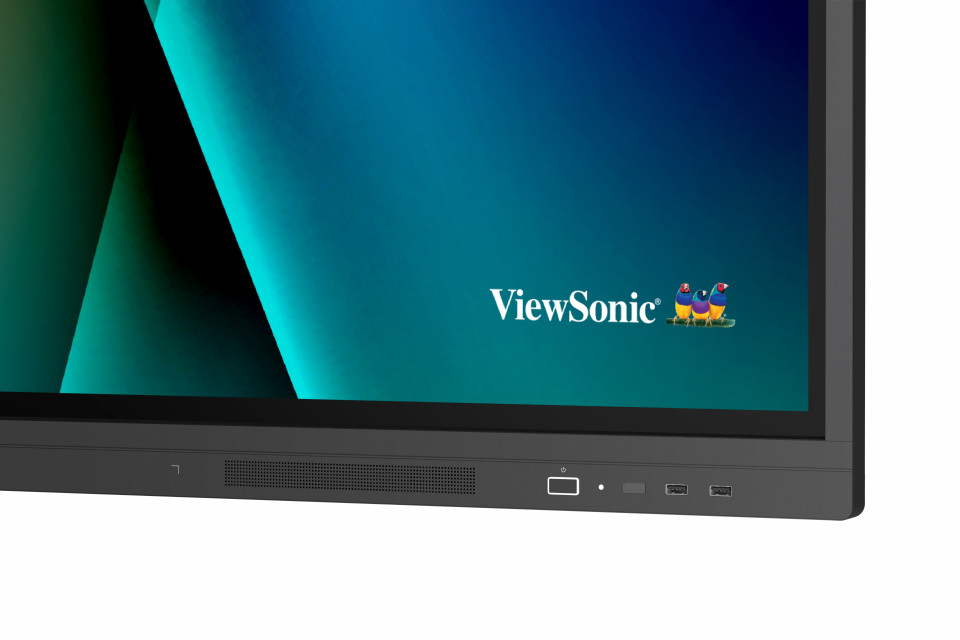

Type A: USB2.0 Front x2 (SmartPort™ USB);
Rear x2
Type B: x1 for HDMI/VGA touch
- SPEAKERS
10W x 2 subwoofers
- Embedded OS
Android 9
- Bundle Software
Basic Annotation Software: myViewBoard Whiteboard
Pro Annotation Software: myViewBoard Whiteboard for Windows
(Embedded in optional Windows Slot-in PC)
Wireless Presentation: myViewBoard Display
- Special Features
All-in-one USB port: (combine slot-in PC/Android/HDMI USB port) Front “SmartPort™ USB” to all channels.
Simple LAN sharing between IFP and slot-in device: 10/100M for Android & Slot-in PC
Light Sensor: Yes
- Power
Voltage: 162-240VAC +/- 10%
Consumption: On: 175W (typ.) / Off: <0.5W
- ERGONOMICS

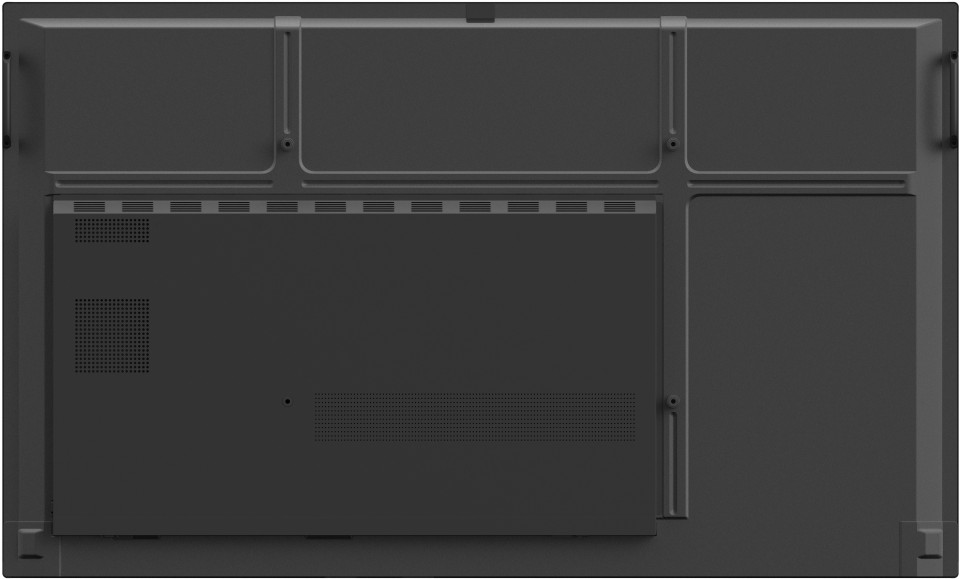

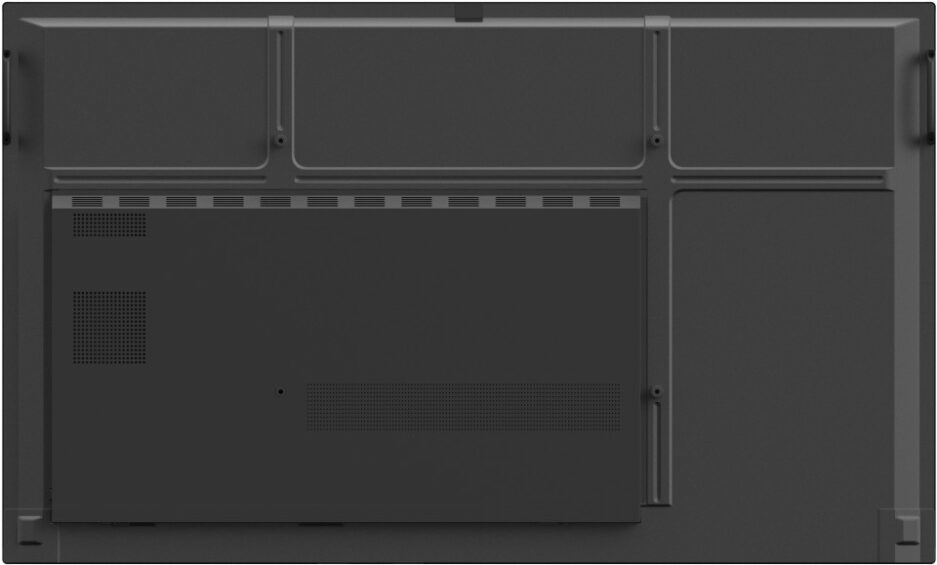

Wall Mount (VESA® ): 600×400
- OPERATING CONDITIONS
Temperature (º C): 0°C to 40°C
Humidity: 10% ~ 90% RH non-condensing
- DIMENSIONS (W x H x D)
Physical (inch / mm): 1489×897×87 mm / 58.6×35.3×3.4 in
Packaging (inch / mm): 1628×208×1005 mm / 64×8.2×39.5 in
- WEIGHT
Net (lb / kg): 38.3kg/84.4lb
Gross (lb / kg): 46.0kg/101.4lb
- REGULATIONS
BIS, CB, CE,LBL
- PACKAGE CONTENTS
1. Power cable (3 meters) / 2. Remote control / 3. USB cable (3 meters) / 4. Touch pen x 2 / 5. Quick start guide / 6. RS232 adapter / 7. Clamp x 5 / 8. Screw x 8 / 9. HDMI cable (3 meters)
- Compatible Slot-in PC
VPC12-WPO/VPC25/VPC2C/VPC27
